Garter Springs

Design of Garter Springs

Design methods for garter springs are continuations of methods developed for helical compression and extension springs. Generally, they are designed with as low a rate as possible to provide a nearly constant force on a seal as it wears.

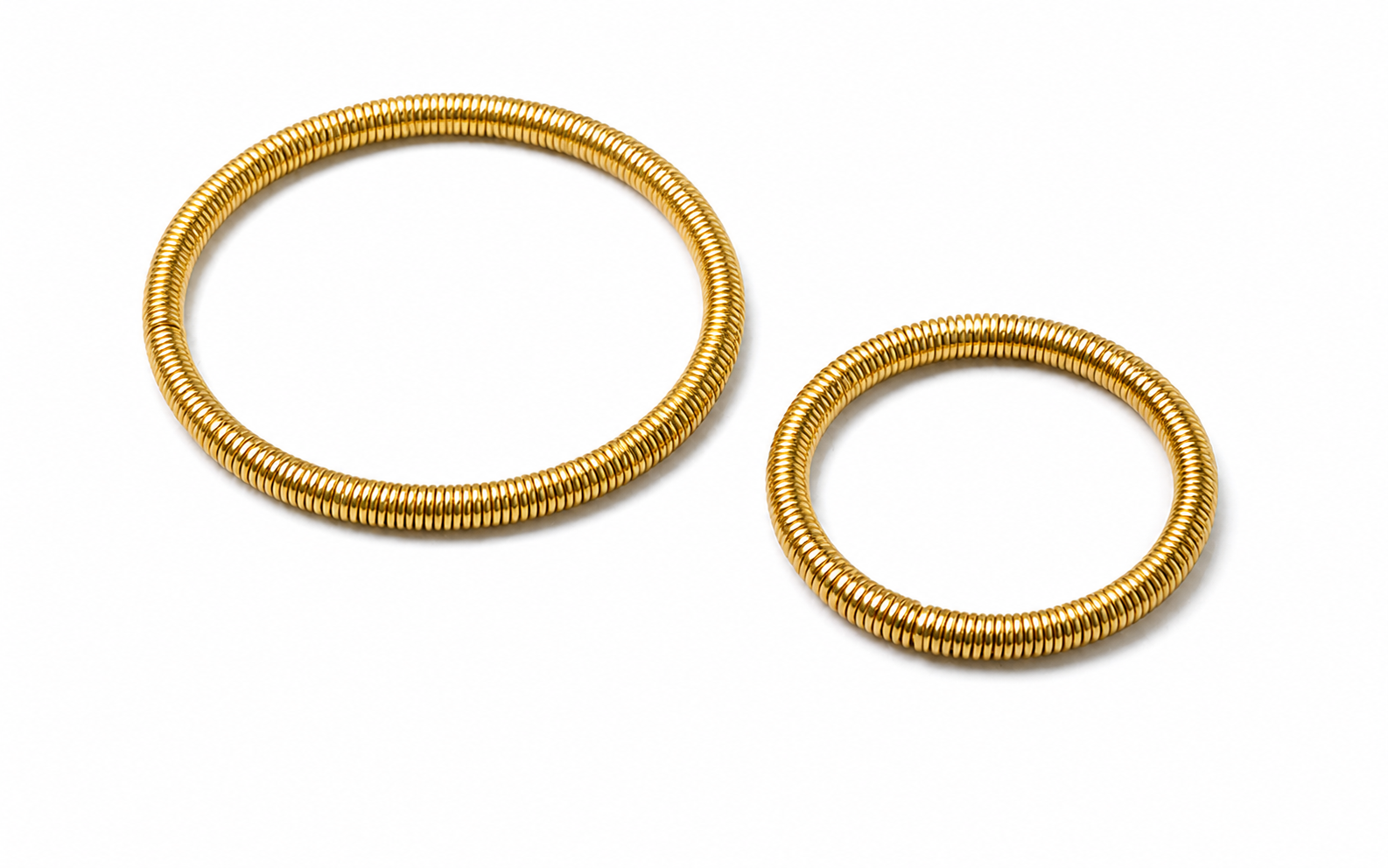

The garter is essentially a helical extension spring formed into a circular ring with the ends connected on the inside diameter. Thus a garter spring is an endless spring, ignoring that its ends are joined which does not affect the results and is easily identified in that it looks like a circle made up of a spring.

Custom Services & Finishes

Take a moment to explore the variety of additional services Ace Wire Spring & Form Co. Inc., can perform on any type of spring or wire form to enhance performance and durability. From heat treatment, deburring, and painting to many more offerings, our secondary services are designed to meet your specific needs. Please include the secondary services you would like to add in the comment section of your request for quote, and our engineers will return an accurate and timely quotation with the added services. Visit our Secondary Services Page to learn more.

To review springs and wire form finishes such as e-coating, zinc plating, passivation, and many more, visit Wire Size and Material Range Page.

Design Specifications

Joint Design and Considerations for Garter Springs

Garter spring ends may be fastened together by interlocking loops, staking one coil of the female end into the rib end, soldering (for belt applications) or by screwing one end into the other.

When considering garter spring design, its strength must be such that the joint will not separate when the spring is extended to its maximum diameter regardless of the connecting joint used.

Specifications for Garter Springs in Ordering

Give the following information as completely as possible:

Material:
Assembled Length:
Assembled I.D. (extension) or O.D. (compression):
Installed I.D. or O.D.:
Circumferential Load Required:
Rate:
Direction of Coil:
Type of end connection:
Wire Diameter:
O.D. Body Coil Diameter:
Number of Coils:
Number of Active Coils:
Initial Tension P:
Radial Load P: Max.
Operating Temperature:
Operating Environment:
Finish Requirements:
Rod or Shaft Diameter for Spring Expansion:
Tolerances (specified either on assembled length or I.D. but not on both):

Manufacturing Garter Springs

Ability to work to different pressure and volume
Can form various ends to meet your requirements
Can be made out of carbon steel or stainless steel

Ace Advantage

ACE specializes in custom precision springs and wire forms, offering a distinct advantage by utilizing the most advanced spring design software. ACE validates each existing and new design, notifying the customer with our recommendations.
